Serviceliste
-

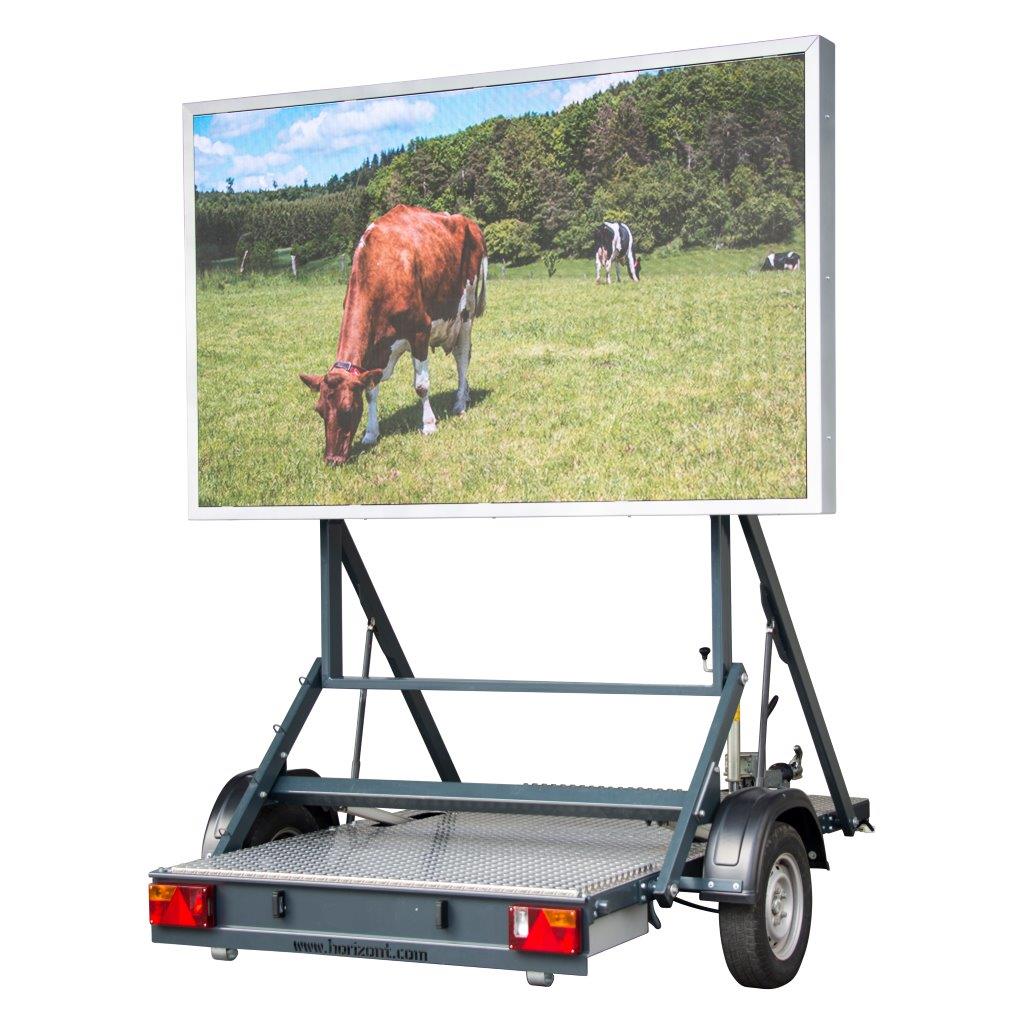

Data LED Display:Listenelement 1
- display size (WxH): 1500x2500mm
- pixel pitch: 3.9mm
- resolution (WxH): 384 x 640 pixels
- power consumption: 7 - 12 amps
- power supply: 230V AC
- luminous intensity: 2500 nits (cd / m²)
- light sensor
-
Data Trailer:Listenelement 2
- dimensions transport (LxWxH): 4150x2210x1370 mm
- dimensions set up: height 3800mm - weight: 1000kg
- chassis: painted steel
- set up by 2 electric motors
-
Controlling the display:Listenelement 3
- 24/7 multimedia PC with Windows 10 operating system
- can be controlled via WLAN, UMTS 3G, HDMI
Serviceliste
-

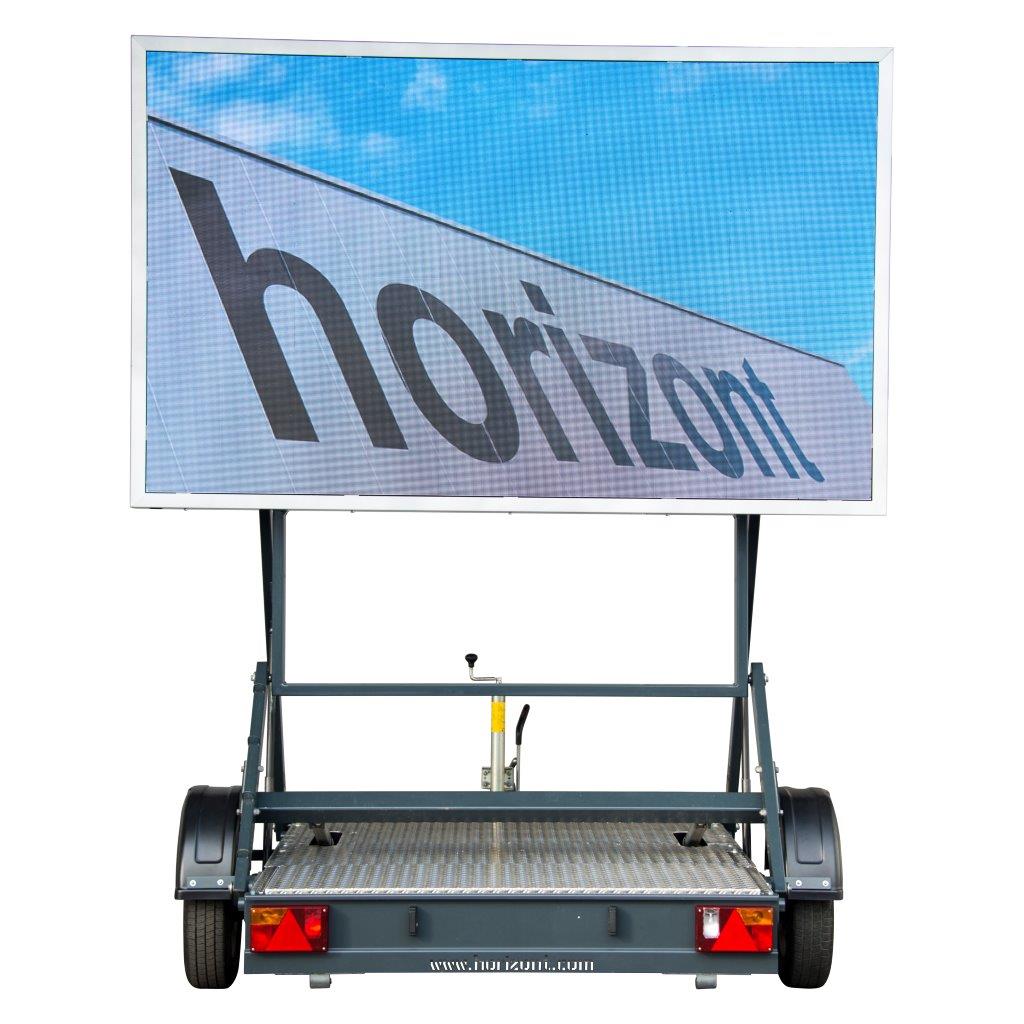

Data LED display:Listenelement 1
- display size (WxH): 1500x2500mm
- pixel pitch: 3.9mm
- resolution (WxH): 384 x 640 pixels
- power consumption: 7 - 12 amps
- power supply: 230V AC
- luminous intensity: 2500 nits (cd / m²)
-
Data Trailer:Listenelement 2
- dimensions transport (LxWxH): 4150x2200x1370 mm
- dimensions set up: height 3500mm - weight: 1000kg
- chassis: painted steel
- set up by 2 electric motors
-
Controlling the display:Listenelement 3
- 24/7 multimedia PC with Windows 10 operating system
- can be controlled via WLAN, UMTS 3G,HDMI
Serviceliste
-

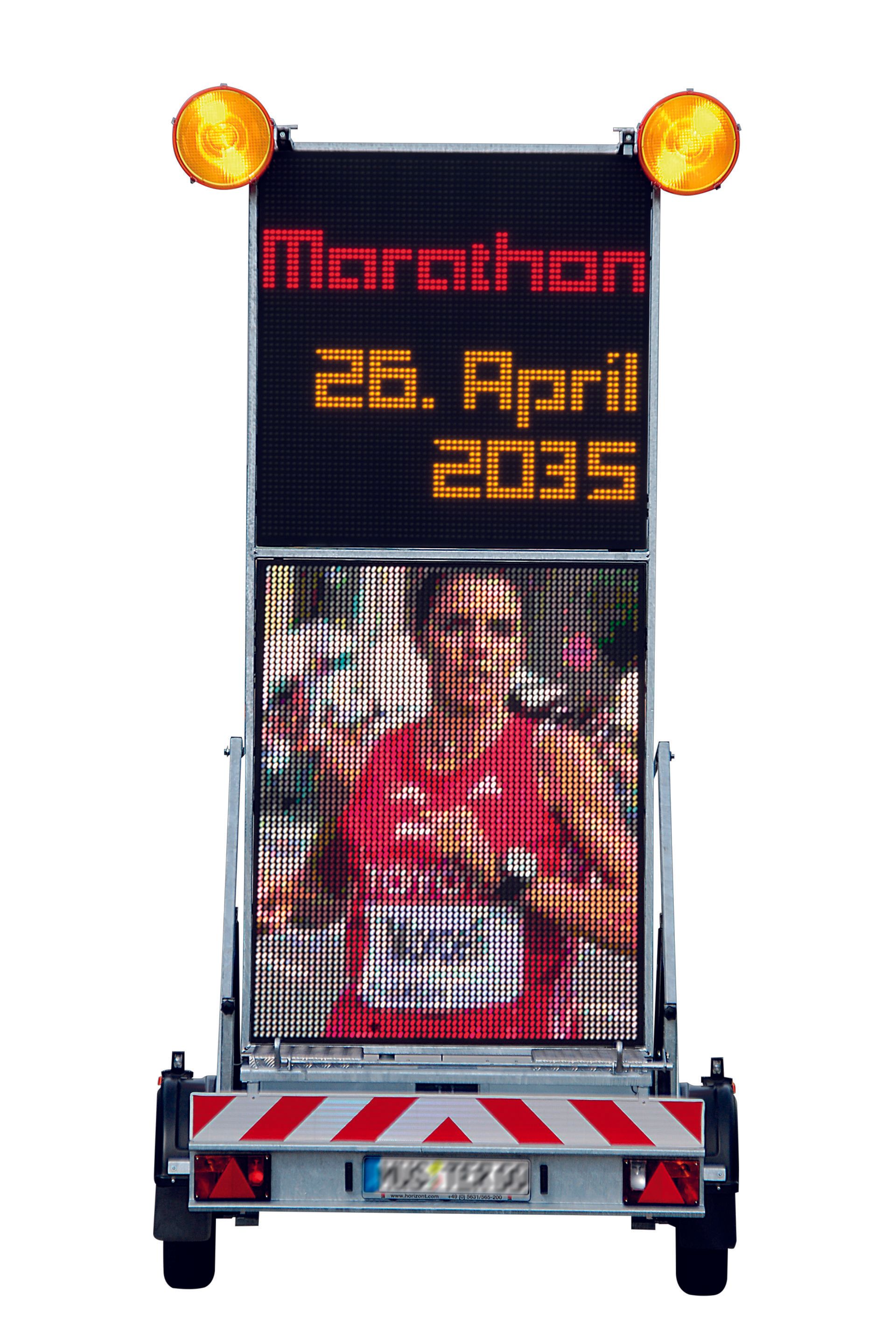

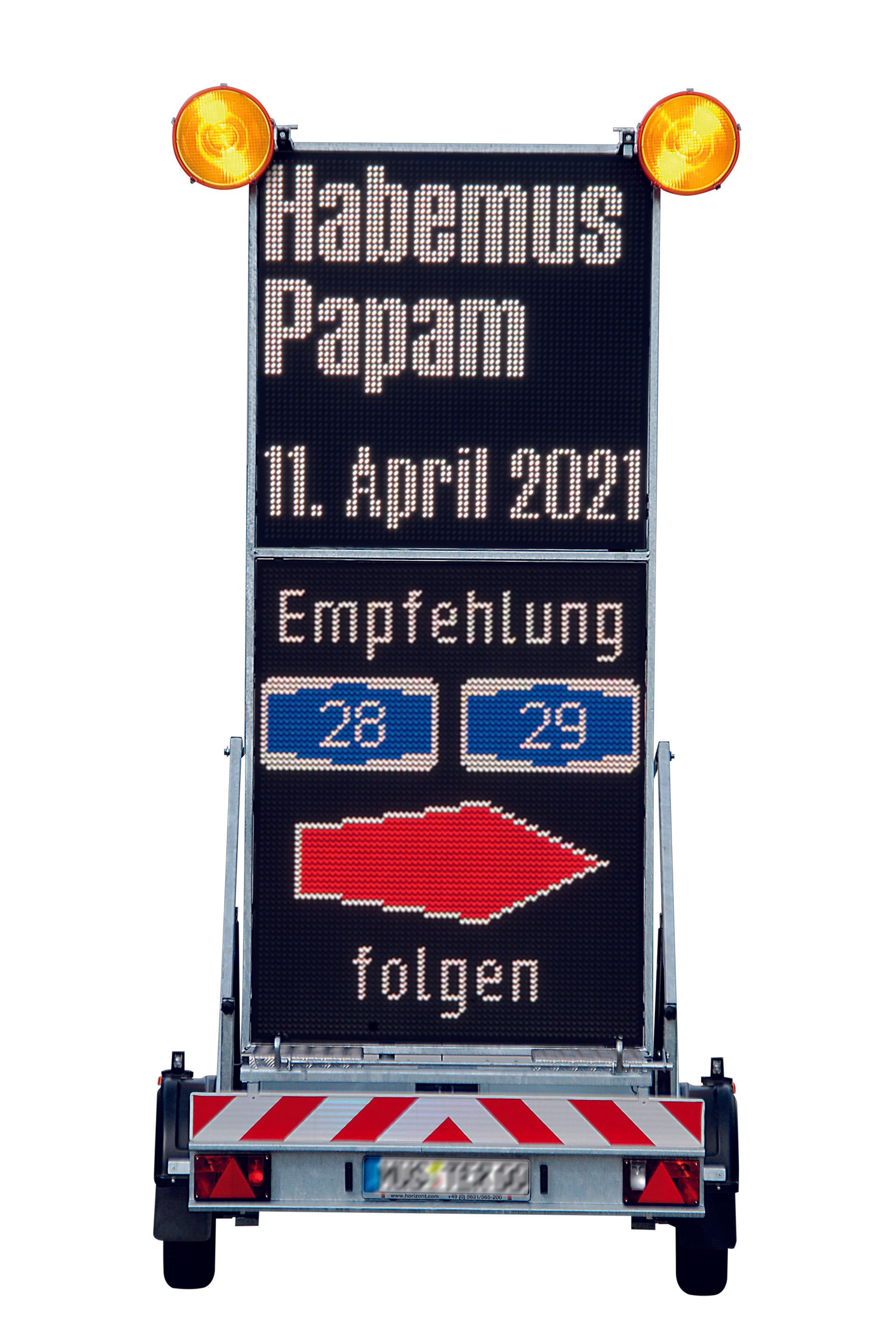

Data LED display:Listenelement 1
- display size top panel (WxH): 1280x1280mm
- resolution top panel (WxH): 64 x 64 pixels
- display size subpanel (WxH): 1280x1600mm
- resolution subpanel (WxH): 64 x 80 pixels
- pixel pitch (total system): 20mm
- power consumption (total system) : 5 - 30 ampere
- power supply (total system): 12V DC
- luminous intensity (total system): 13,000 nits (cd / m²)
-
Data trailer:Listenelement 2
- dimensions transport (LxWxH): 4320x2230x1380 mm
- dimensions set up: height 3900mm
- weight: 1000kg
- chassis: galvanized steel
- set up by 1 electric motor
-
Controlling the displayListenelement 3
- content can be played via cable or via our own horizont CMS on the display.
